Profile - Technical specifications

Technical specifications

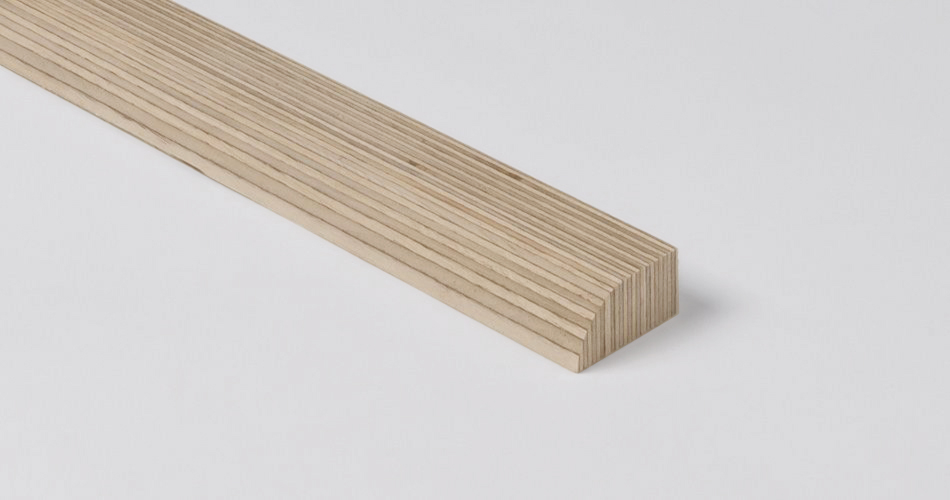

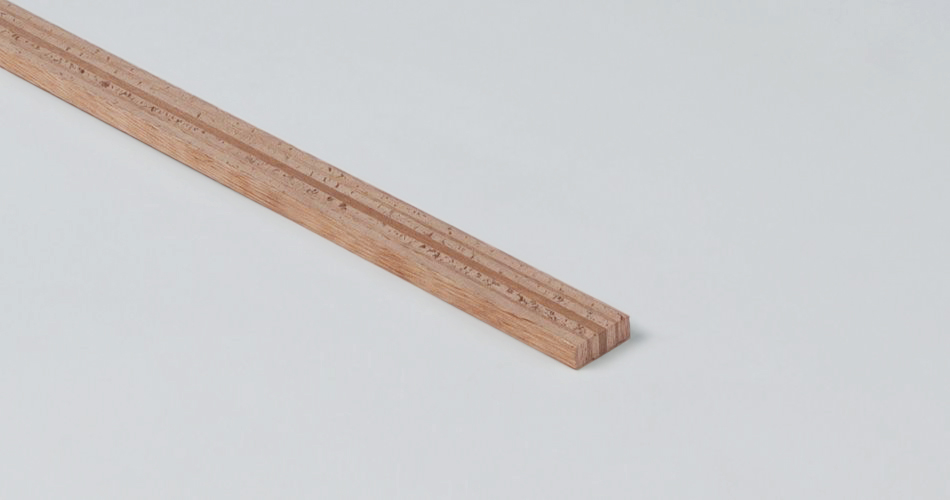

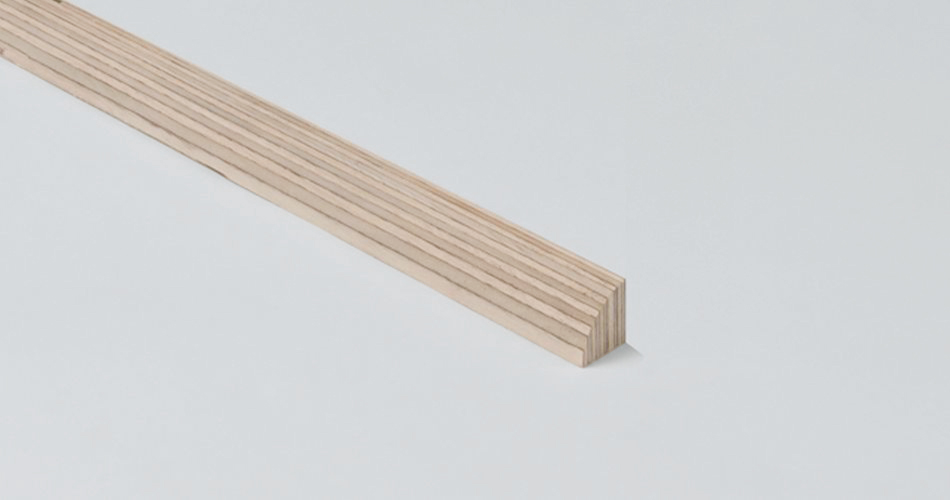

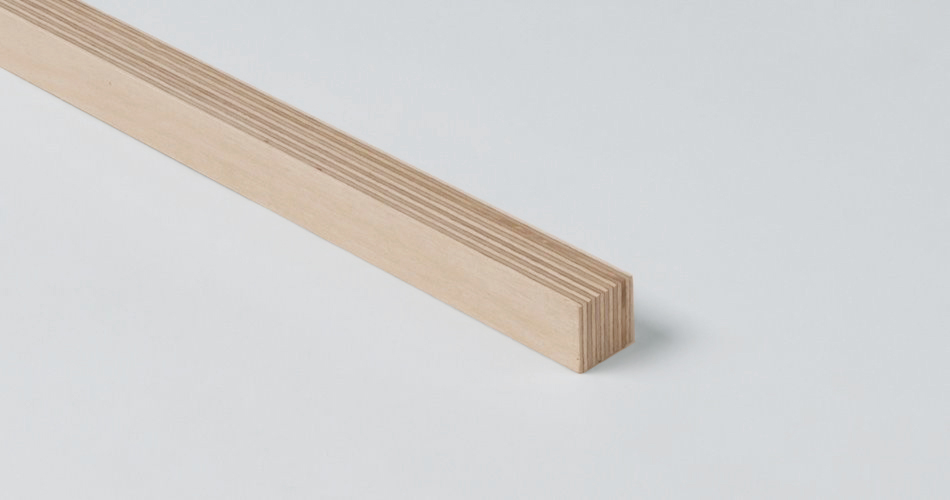

Structure: Solid profile composed of layers of approximately 1 to 3 mm veneer of end grain wood and wood with the grain, glued crosswise


Length: Maximum length 2450 mm, tolerance sawn 0.2 - 0.3 %


Width: Maximum width 1250 mm, tolerance sawn 0.2 - 0.3 %


Thickness: 6 to 50 mm, tolerance sanded ± 0.2 - 0.3 mm


Squareness: ± 1 mm per meter


Density: Depending on the kind of wood 400 - 800 kg/m³


Stability of shape: According to NEN-EN 318, measured by the SHR RC 2115 with climate changes
Standard climate 20 ± 2 °C and 65 ± 5 % RH
Dry 20 ± 2 °C and 35 ± 5 % RH
Humid 20 ± 2 °C and 85 ± 5 % RH
Result: Dependent on kind of wood
Lengthwise (direction of the lines) ≤ 0.1 %
Crosswise (width direction, direction square to the lines) ≤ 2 %
Thicknesswise (in the thickness direction) no measurable result


Tensile strength: Measured perpendicularly according NEN-EN 319 by the SHR RC 2115
Bonding of Plexwood ≥ 1.01 N/mm², the glue used by Plexwood meets quality D4 according to NEN-EN 204


Wood properties: Wood is not static, has a high electrical resistance (1 - 1000 MΩ), and a small heat conductivity (0.11 - 0.16 W/m²K) of which the effect is that it slows down the spreading of fire (source: Wood Vademecum; Wood Centre Foundation [Hout Vademecum; Stichting Centrum Hout], Almere 2001, pages 46, 48)

The brand name Plexwood® is registered and the product is protected © 2014-2024 Plexwood
